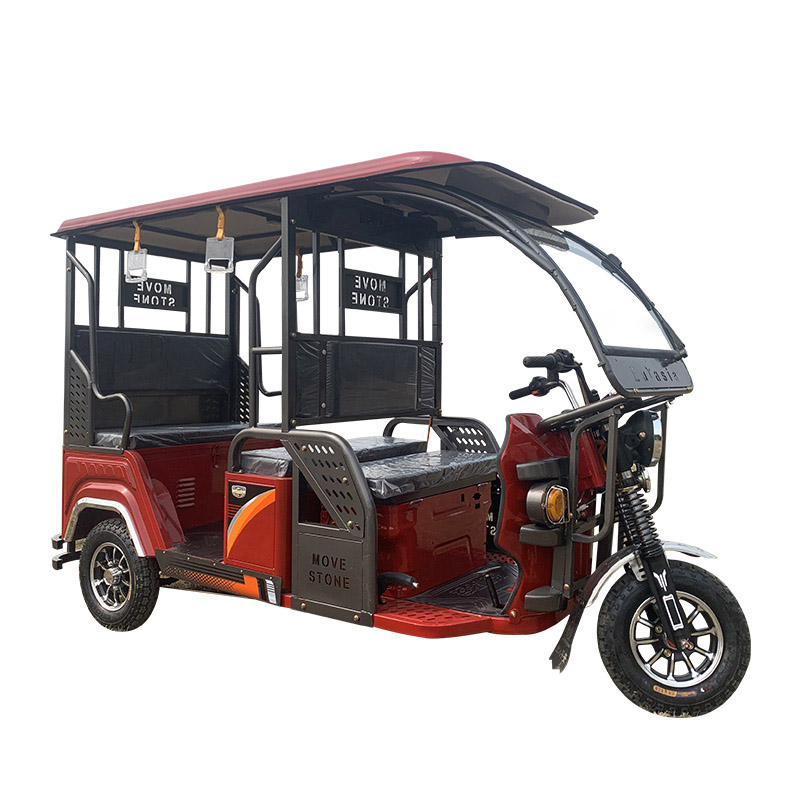

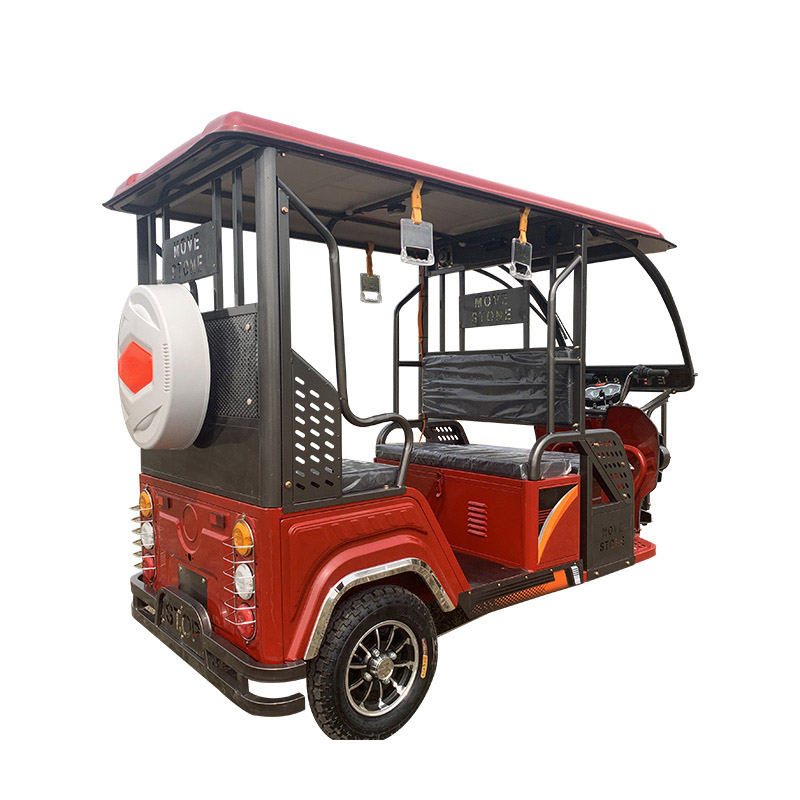

- electric passenger tricycle
- Model:CQE-P
L*W*H (mm)：2950*1150*1850
Cargo Box Size (mm):1.8m*1.3m*0.35m
Motor, Controller (w):1500w 24Tubes /2200w 30Tubes 48V/60v/72v
Battery: 60V50ah/72V
Product Advantages:
2. Maximum load capacity of 5 adults.
3. Equipped with mountain tyres, which fit all kinds of bad road conditions.
4. Weldded by robots, which makes the structure of the frame graceful and solid. The life span of the vehicles can be as long as 5-8 years.
Product Parameters :
|
Optional Colors |
Blue, red, gray, silver etc |
|
L*W*H (mm) |
2950*1150*1850
|
|
Cargo Box Size (mm) |
1800*1300*350 |
|
Wheel Base (mm) |
F/400-12.300-12 R/500-12 .400-12 |
|
Minimum Ground Clearance(mm) |
≥180 |
|
Minumum Turning Radius (m) |
≤5 |
|
Curb Weight (kg) |
280 |
|
Rate Load (kg) |
1000 |
|
Max Speed (km/h) |
30-45 |
|
Grade Ability (%) |
≤30 |
|
Battery |
60V50ah/72V |
|
Motor, Controller (w) |
1500-3000 |
|
Range Per Charging (km) |
50-60 |
|
Charging Time (h) |
8 |
|
Front Shock Absorber |
37/43 Hydraulic |
|
Rear Shock Absorber |
8KG/ 7 pieces leaf spring *2 |
|
Front/Rear Tyre |
F 300-12.400-12/ R 300-12.450-12 |
|
Rim Type |
Steel |
|
Front/Rear Brake Type |
F Disc / R Drum |
|
Parking Brake |
Hand brake |
|
Rear Axle Structure |
Integrated rear axle, 180drum |
|
SKD |
60 unites/40HQ |
|
SKD (Steel Frame) |
60 units/40HQ |
Product Features :
 |
|
 |
|
LED Head Lights |
|
LED Head Lights |
 |
|
 |
|
Power Lock with Remote Control |
|
Floor Matting |
FREEBIES:
1. Remote With Alarm
2. Spare Tire
3. Charger
