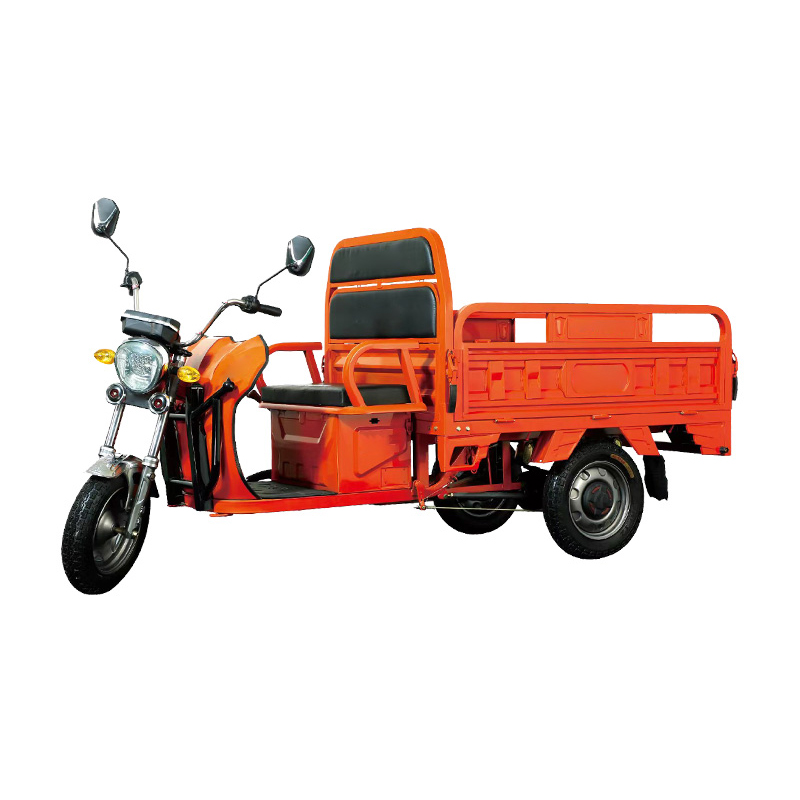

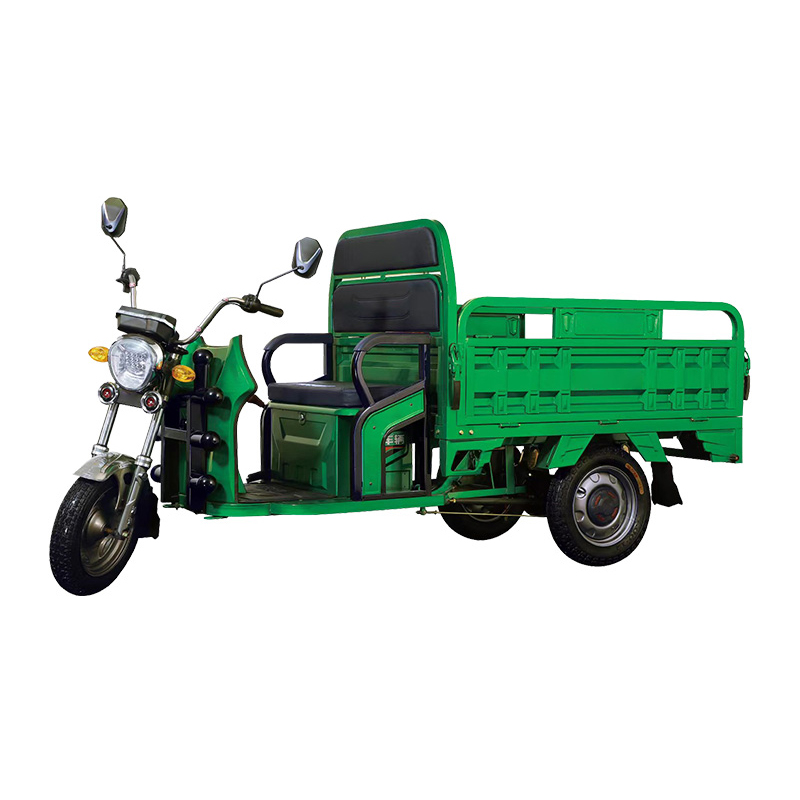

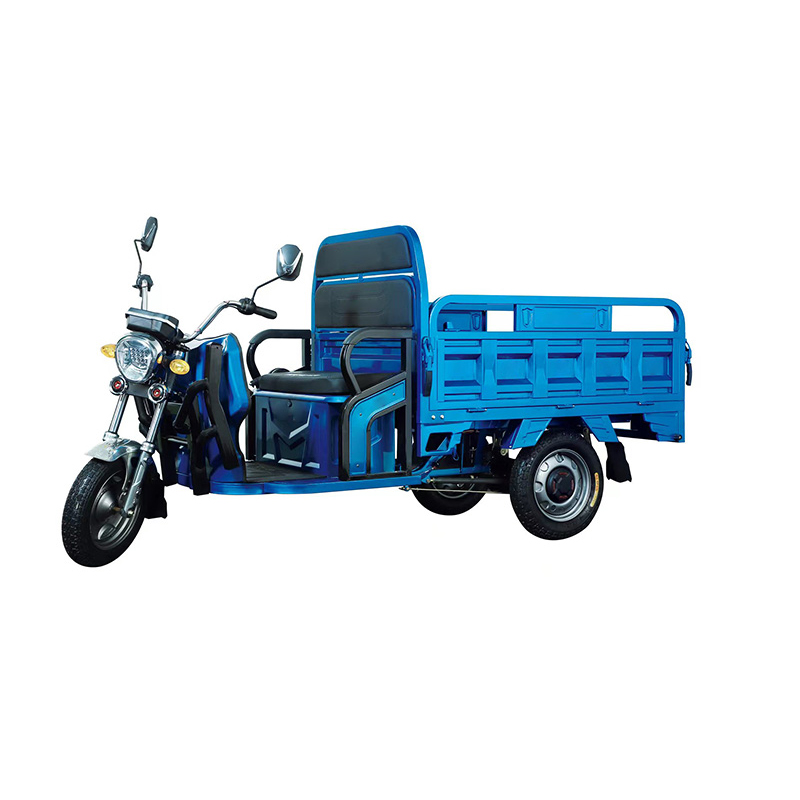

- 载货电动三轮车
- 型号:CQE-C
长*宽*高 (mm):3200*1370*1330
货箱尺寸(mm):1800*1300*350
电机控制器 (w):1500w 24Tubes /2200w 30Tubes 48V/60v/72v
电池: 60V50ah/72V
产品的优势:
2. 动力强劲，载重量大，最大可载1.5吨.
3. 搭配山地胎，可适应各种恶劣路况.
4. 机器人焊接，车厢车架结构美观结实，整车寿命可达5-8年.
产品的参数 :
|
Optional Colors |
Blue, red, gray, silver etc |
|
L*W*H (mm) |
3200*1370*1330 |
|
Cargo Box Size (mm) |
1800*1300*350 |
|
Wheel Base (mm) |
F/400-12 R/500-12 |
|
Minimum Ground Clearance(mm) |
≥180 |
|
Minumum Turning Radius (m) |
≤5 |
|
Curb Weight (kg) |
350 |
|
Rate Load (kg) |
1500 |
|
Max Speed (km/h) |
30-45 |
|
Grade Ability (%) |
≤30 |
|
Battery |
60V50ah |
|
Motor, Controller (w) |
1500-2000 |
|
Range Per Charging (km) |
50-60 |
|
Charging Time (h) |
8 |
|
Front Shock Absorber |
43 Hydraulic |
|
Rear Shock Absorber |
8KG/ 7 pieces leaf spring *2 |
|
Front/Rear Tyre |
F 400-12/ R 450-12 |
|
Rim Type |
Steel |
|
Front/Rear Brake Type |
F Drum / R Drum |
|
Parking Brake |
Hand brake |
|
Rear Axle Structure |
Integrated rear axle, 180drum |
|
SKD |
60 unites/40HQ |
|
SKD (Steel Frame) |
60 units/40HQ |
产品的特点:
产品细节:
 |
|
 |
|
|
|
|
 |
|
 |
|
|
|
|
赠品:
1. 远程报警
2. 备用轮胎
3.充电器
